3 and 4-Axis Machining

Our CNC Milling area has 15 vertical machining centers, all with 3-axis and 4-axis capabilities. Rely on us for quick turnaround, great attention to detail and tight tolerances. We can machine multiple types of billet material on these machines.



We can also finish machine your provided castings or castings we procure from our global sourcing network. These capabilities allow shorter delivery times for your projects. Many of our machinist have over 20 years of experience with Dynamic and their pride of craftmanship and quality shines through on the finished products we deliver to you.

Our Equipment

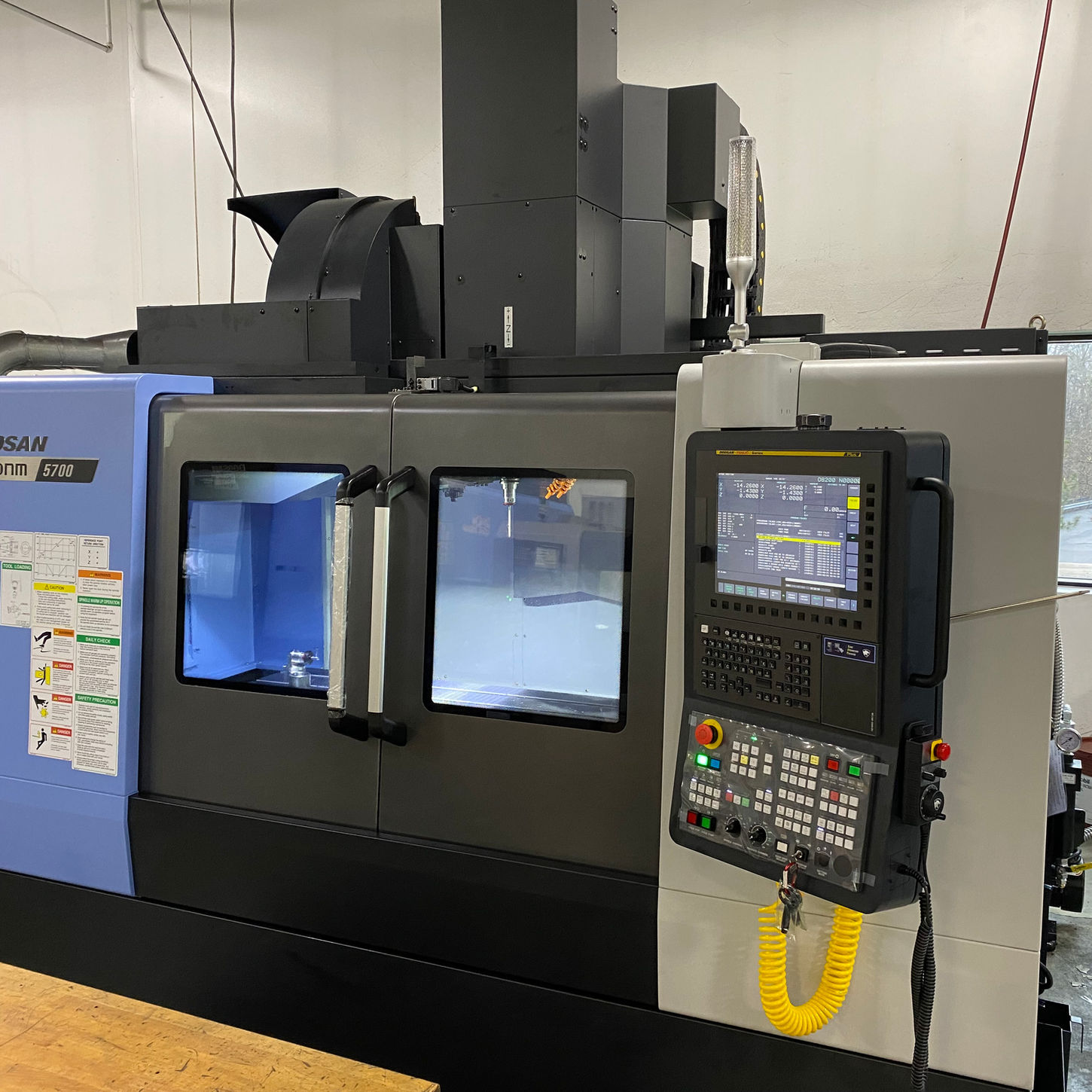

Doosan DNM 5700

The DNM 5700 delivers the best-in-class vertical machining center fully equipped with the most standard features built-in. This powerfully productive machine features a BIGPLUS spindle, dual chip augers, FANUC 0i-M controls with Doosan's Easy Operation Package (EOP), through-spindle coolant, spindle chiller, and more. This rigid, highly accurate and fast machine gives Dynamic Prototype the power to MAKE MORE.

  • TRAVELS

    • X Axis Travel: 41.3"

    • Y Axis Travel: 22.4"

    • Z Axis Travel: 20"

  • FEEDRATES

    • X Axis Rapid Traverse: 1,417 ipm

    • Y Axis Rapid Traverse: 1,417 ipm

    • Z Axis Rapid Traverse: 1,181 ipm

    • Cutting Feedrate: 1 - 590 ipm

  • TABLE

    • Table Length: 51.2"

    • Table Width: 22.4"

    • Maximum Table Capacity: 2,205 lb

  • DIMENSIONS & WEIGHTS

    • Height: 117.5"

    • Length: 122.4"

    • Width: 95"

    • Weight: 14,330 lb

    • Weight (lb): 31,900 lb

Samsung MCV50.jpg

Samsung MCV50

  • QUANTITY: 2

  • CONTROL TYPE: Fanuc 0i-MD

  • # AXIS: 3

  • TRAVELS

    • X-Axis Travel: 35.43"

    • Y-Axis Travel: 19.69"

    • Z-Axis Travel: 20.08"

    • Rapid Traverse Rate (X/Y/Z): 1,417/1,417/1,181 ipm

  • TABLE

    • Table Size: 36.22" x 19.69"

    • Table Capacity: 1,322 lb

  • SPINDLE TAPER: CAT 40

  • SPINDLE SPEED: 10,000 RPM

  • MAIN MOTOR: 20 hp

  • Tool CHANGER CAPACITY: 30

  • Coolant Thru Spindle

  • DIMENSIONS & WEIGHTS

    • 102" x 87" x 100"

    • Weight (lb): 13,800 lb

Samsung MCV400

The Samsung MCV 400 vertical machining center is designed for high productivity and high speed machining. It features through spindle coolant, rigid tapping, and 12000 RPM spindle.  Dynamic Prototype has two identical MCV 400 machines ready for your next project.

  • QUANTITY: 2

  • CONTROL TYPE: Fanuc 0i-MF

  • TRAVELS

    • X Axis Travel: 30.1"

    • Y Axis Travel: 16.9"

    • Z Axis Travel: 20.08"

  • TABLE

    • Table Length: 36.2"

    • Table Width: 18.1"

    • Maximum Table Capacity: 1,102 lb

  • ADDITIONAL SPECS:

    • Spindle Nose to Table Top: 5.9" - 25.9"

    • Spindle Speed: 12,000 RPM (BIG PLUS)

    • Spindle Motor: 25 / 20 H.P.

    • Spindle Taper: BT40

    • Tool Changer Style: Sidemount / Dual Arm

    • Tool Changer Stations: 30 + 1 Stations

Samsung MCV-400.jpg
Samsung MCV50.jpg

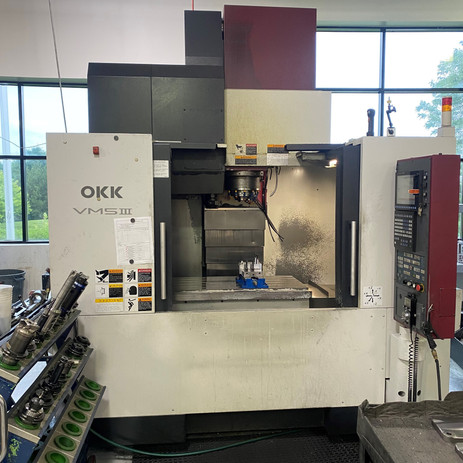

OKK VM5 III

  • CONTROL TYPE: Fanuc 160isMB CNC Control

  • # AXIS: 3

  • TRAVELS

    • X-Axis Travel: 40.15"

    • Y-Axis Travel: 20.08"

    • Z-Axis Travel: 20.08"

  • TABLE

    • Table Size: 59" x 26"

    • Table Capacity: 1,764 lb

  • FEEDRATES - All AXIS: 1 - 787 IPM

    • X Axis Rapid Traverse: 1,417 ipm

    • Y Axis Rapid Traverse: 1,417 ipm

    • Z Axis Rapid Traverse: 1,181 ipm

  • ADDITIONAL SPECS:

    • Spindle Horsepower: 15 HP

    • Spindle Speed Range: 50 - 10,000 RPM

    • Spindle Taper: CAT 50

    • Coolant Thru Spindle: Yes

    • Automatic Tool Changer Capacity (ATC): 20

  • DIMENSIONS & WEIGHTS

    • 120" x 98" x 109"

    • Weight (lb): 17,000 lb

OKK VM5-II VERTICAL MACHINING CENTER

​Mitsubishi Neomatic 635 Cnc Control * Dual Coil Type Chip Augers * Full Enclosure * Box Way Construction * 1,000 PSI THROUGH SPINDLE COOLANT * Oil Chiller

  • TRAVELS

    • X-Axis Travel: 40.2"

    • Y-Axis Travel: 20.1"

    • Z-Axis Travel: 20.1"

  • TABLE

    • Table Size: 41.3" X 22.1"

    • Table Capacity: 1,760 lb

  • FEEDRATES - All AXIS: 1 - 787 IPM

    • X Axis Rapid Traverse: 1,417 ipm

    • Y Axis Rapid Traverse: 1,417 ipm

    • Z Axis Rapid Traverse: 1,181 ipm

  • ADDITIONAL SPECS:

    • Distance from Table Top to Spindle Nose: 5.9" to 26"

    • Spindle Speeds: 35 to 13,000 Rpm

    • Spindle Taper: Cat 40

    • Spindle Motor: 40 Hp

    • Tool Magazine Capacity: 20 Tools

  • DIMENSIONS & WEIGHTS

    • 120" x 98" x 109"

    • Weight (lb): 17,000 lb

Haas VF5 XT.png

HAAS VF5 XT

The VF-5/40XT features more X-axis travel than the standard VF-5/40. Extended X-axis travel, High-power, direct-drive spindles, Made in the USA, High spindle speeds, fast rapids, and quick tool changes reduce cycle times and yield high-volume production.

  • CONTROL TYPE: Fanuc 160isMB CNC Control

  • # AXIS: 3-4 Axis section

  • TRAVELS

    • X-Axis Travel: 60.0"

    • Y-Axis Travel: 26.0"

    • Z-Axis Travel: 25.0"

  • TABLE

    • Table Size: 59" x 26"

    • Table Capacity: 1,764 lb

  • FEEDRATES - MAX CUTTING: 500 IPM

    • X Axis Rapid Traverse: 710 ipm

    • Y Axis Rapid Traverse: 710 ipm

    • Z Axis Rapid Traverse: 710 ipm

  • ADDITIONAL SPECS:

    • Spindle Nose to Table (~ max): 29.2 in

    • Spindle Nose to Table (~ min): 4.2 in

    • Spindle: S.A.E.

    • Max Rating: 30.0 hp

    • Max Speed: 8100 rpm

    • Max Torque: 90.0 ft-lbf @ 2000 rpm

    • Max Torque w/opt Gearbox: 250 ft-lbf @ 450 rpm

    • Drive System: Inline Direct-Drive

    • Taper: CT 40

    • Capacity: 20

  • TOOL CHANGER: S Type  Carousel

  • DIMENSIONS & WEIGHTS

    • 62" x 23"

    • Weight (lb): 4,000 lb

HAAS VF3 SS with 5 axis Trunnion

  • MANUFACTURER: Haas Model: VF-3SS

  • CONTROL TYPE: Haas CNC Control w Coldfire Processor

  • # AXIS: 3-4 Axis with 5 Axiz Trunnion

  • TRAVELS

    • X Axis Travel: 40"

    • Y Axis Travel: 20"

    • Z Axis Travel: 25"

  • TABLE

    • Table Length: 48"

    • Table Width: 18"

    • Maximum Table Capacity: 1,750 lb

  • ADDITIONAL SPECS:

    • Spindle To Table Distance: 4.2"/29.2"

    • Spindle Taper: CAT 40

    • Spindle Speeds: 12,000 RPM Max

    • Transmission: Direct Inline Spindle Drive

    • Rapid Traverse Rate (X/Y/Z): 1,400 IPM

    • Maximum Cutting Feed Rate: 833 IPM

    • Tool Changer Style: Side Mount, Twin Arm

    • Tool Changer Capacity: 40 Stations

    • Spindle Drive: 30 HP

  • DIMENSIONS & WEIGHTS

    • Main Unit: 123.00" x 93.00" x 112.00"

    • Trunnion Table: 43.00" x 15.00" x 15.00"

    • Weight (lb): 4,000 lb
